PTFE molded sheet is manufactured by molding method with PTFE granular resin.PTFE possesses the best chemical resistance of all known plastics.
It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180- +260

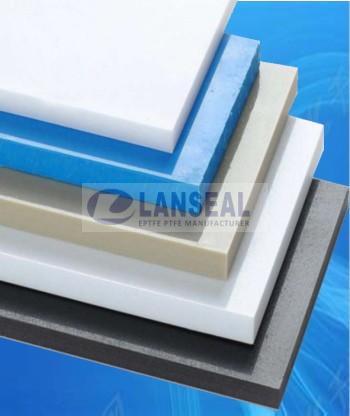

| PTFE SHEET |
FEATURES:
PTFE molded sheet is manufactured by molding method with PTFE granular resin.PTFE possesses the best chemical resistance of all known plastics.
It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180- +260
 |  |  |
 |  |  |
PTFE SHEET SPECIFICATIONS:
Length（mm）×Width(mm) | Thickness(mm) | |
tolerance | ||
150×150 | 1.0-30 | ±0.30-±0.50 |
250×250 | 1.5-30 | ±0.30-±0.50 |
300×300 | 1.5-30 | ±0.30-±0.50 |
450×450 | 1.5-30 | ±0.30-±0.50 |
600×600 | 2-100 | ±0.30-±0.50 |
800×800 | 3-100 | ±0.30-±0.50 |
1000×1000 | 3-100 | ±0.30-±0.50 |
1200×1200 | 3-100 | ±0.30-±0.50 |
1000×2000 | 3-100 | ±0.30-±0.60 |
1500×1500 | 3-100 | ±0.30-±0.50 |
1800×1800 | 3-100 | ±0.30-±0.50 |
2000×2000 | 3-100 | ±0.30-±0.50 |
TECHNICAL DATA
Propertier | Unit | Specification |
Apparent Density | g/cm3 | 2.10-2.30 |
Tensile Strength ≥ | MPa | 15 |
Elongation at break ≥ | % | 150 |
Breakdown strength ≥ | KV/mm | 10 |
